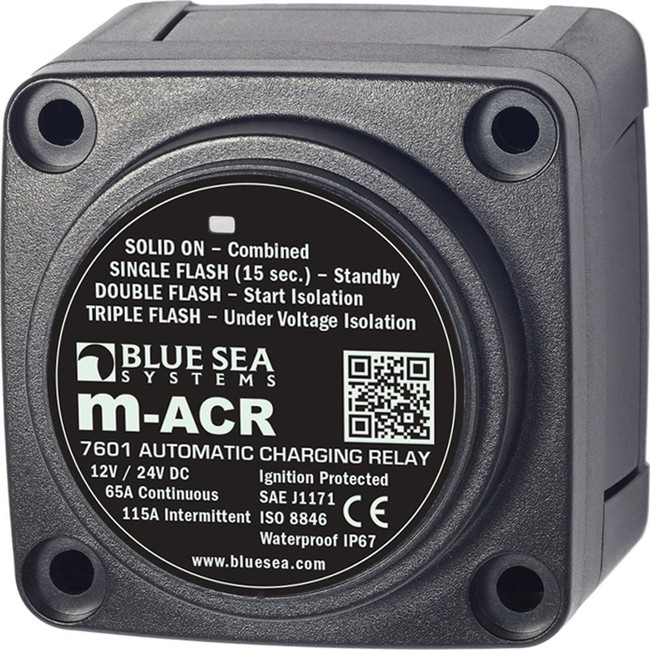

Blue Sea 7601 DC Mini ACR Automatic Charging Relay - 65 Amp

Blue Sea Systems 7601 7601 DC Mini ACR Automatic Charging Relay - 65 Amp

• 65 Amp continuous rating manages the charging current from alternators up to 65 Amps found on most outboards and many inboard engines
• Compact case design allows surface and panel mounting
• Senses charging on two battery banks
• Snap-on cover insulates terminal connections
• LED indicates ACR status
• 1/4" x .032" male quick connect terminal for ground
• 5/8" (16 mm) stud length to accept multiple cable terminals
• 12V DC voltage input

• Intermittent Rating: 5 min.: 115A
• Terminal Stud Size: 1/4"-20
• Relay Contact Position: Open (30 sec.): 12.75V DC
• Continuous Rating: 65A
• Maximum Torque: 75 in-lb (8.5 Nm)
• Relay Contact Position - Open High: 16.0V DC
• Amperage Operating Current: 175mA (Combine)
• Relay Contact Position: Combine (30 sec.): 13.0V DC
• Under Voltage Lockout: 9.5V DC
• Amperage Operating Current: 15mA (Open)
• Relay Contact Position: Combine (2 min.): 13.6V DC
• Maximum Cable Size: 1/0 AWG
• Relay Contact Position: Open (10 sec.): 12.35V DC

Manufacturer: Blue Sea Systems
Part number: 7601
UPC: 632085076016
