Description
Lenco Marine Electric RetroFit Kit for Bennett Trim Tabs 15064001
Upgrade your boat with the latest trim tab technology - trouble-free, high performance Lenco electric actuators.
Easy installation:
- Use existing Bennett trim planes, lower bracket and switch
- Use all existing mounting holes

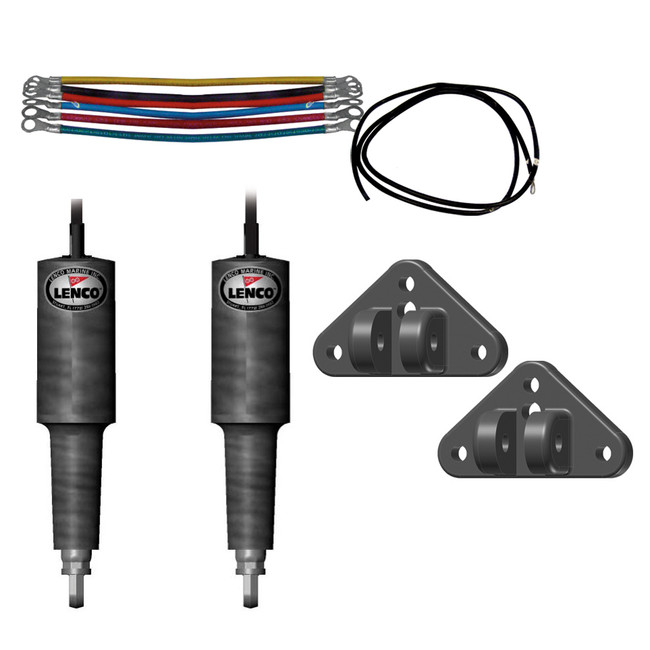

Lenco RetroFit Kit includes:
- 2 electric actuators
- 2 upper mounting brackets
- Switch wiring kit
- All mounting hardware
Features:
- Lenco wire feeds through existing oil line hole in transom
- Lenco upper mounting bracket fits existing Bennett mounting holes
- Existing Bennett trim tab plane and hinge
- Existing Bennett lower bracket
Just 4 Simple Steps:
- Remove Bennett actuators, and install Lenco upper mounting brackets on transom
- Feed Lenco wires through holes in brackets and through existing oil line holes in transom
- Mount Lenco actuators on to new upper brackets and existing Bennett lower brackets
- Connect Lenco actuator wires to existing harness.
Warranty Information
NuWave is an authorized Lenco dealer. Please see Lenco's website for warranty information.
View AllClose
Specs
UPC: |
874847004985 |
|
MPN:
|
15064-001
|
Actuator Type: |
Electric |
