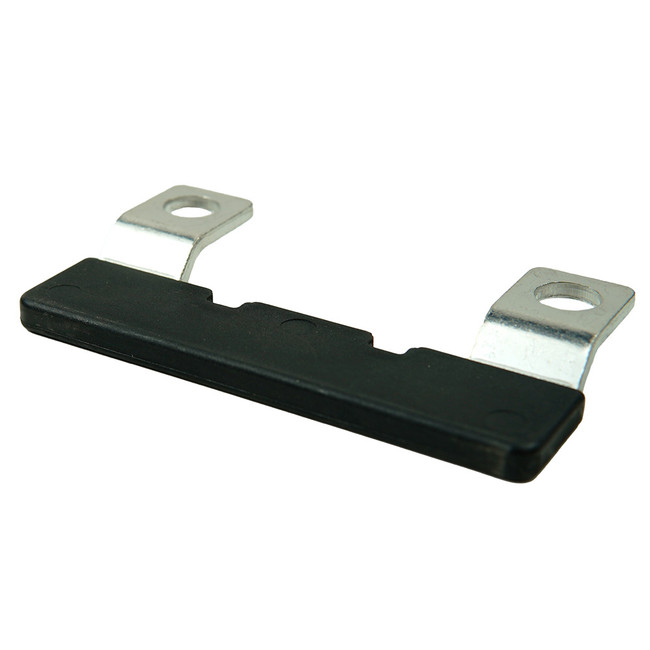

XD Relay Cross-Over Bus Bar
The XD Relay Cross-Over Bus Bar allows users to link together Egis XD Single, Dual, and Triple XD Relays to each other in multiple configurations and even to the Egis 8700 Mechanical Disconnect. Linking relays together creates compact installations and allows for robust circuit switching and battery management.
Features:
- Tin-plated copper ensures reliable circuit connectivity and anti-corrosive features keep it last long term.
- Robust Protective Insulation ensures no accidental contact shorts between XD relays.
Specifications:
- Continuous Current (Amps): 500
- Max Voltage (VDC): 72
- Material: Tin-plated copper
- Size (L x W): 90 x 47mm
- Thickness: 2.8mm (1/8")
- Terminal Stud Hole Size: 10.5mm (3/8”)
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Warranty Information
We are an authorized reseller for all products listed on our website. Please contact the manufacturer for warranty info.
View AllClose
Specs
UPC: |
850035199886 |
|
MPN:
|
8791
|
