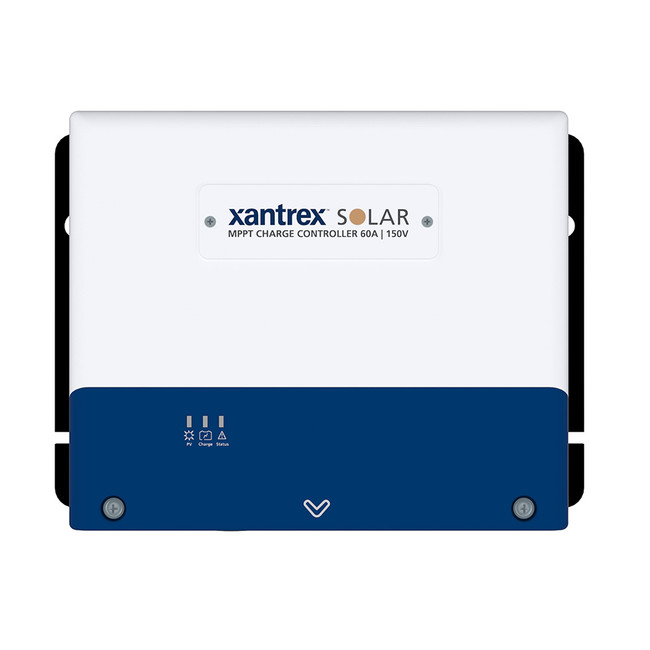

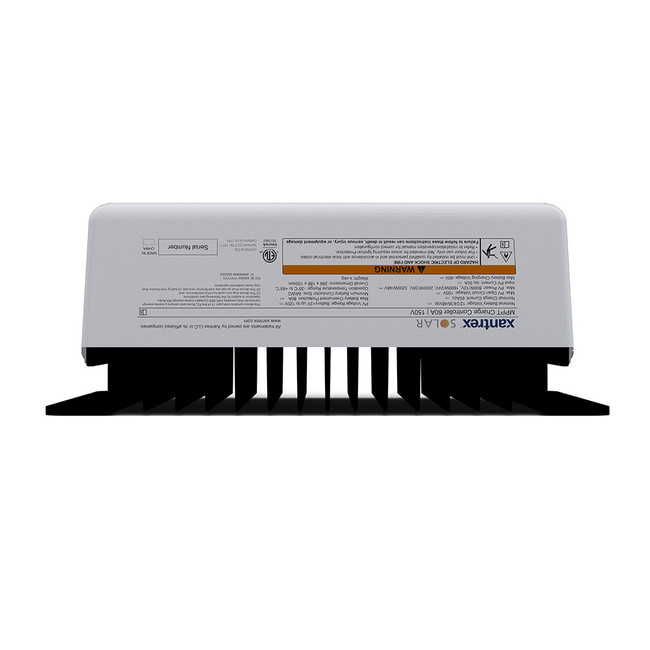

Xantrex 60 AMP MPPT Charge Controller - 710-6048-01

60 AMP MPPT Charge Controller

Enhanced Energy Optimization & SmartSolar Performance.

The Xantrex Solar Charger Controller MPPT60 delivers superior efficiency and performance, supporting up to 150V and 60A for optimal power harvesting and seamless scalability in your solar system. Featuring advanced Maximum Power Point Tracking (MPPT) technology, it offers up to 30% more power compared to PWM charge controllers, enhancing overall energy efficiency. Compatible with 12V, 24V, 36V, and 48V battery systems, the MPPT60 optimizes performance across various energy requirements. This controller provides real-time energy monitoring and comprehensive historical data, empowering informed decisions for improved system performance, energy savings, and reliability.

Features:

• Ultra-fast tracking speed including multiple power point peaks with a 99.5% efficiency rating
• Xantrex MPPT control algorithm maximizes solar system efficiency and energy harvesting effectiveness
• Manages and optimizes power output from a diverse array of solar panels under varying environmental conditions
• Regulates power and current flow to protect and prolong battery lifespan
• The battery’s status is monitored, and the charging current is adjusted to prevent overcharging when fully charged
• Protection against short-circuiting enhances safety, while protection against input overloading enhances
• system reliability and longevity
• Battery temperature compensation boosts both system performance and charging efficiency
• Real-time monitoring provides data on energy usage and solar power system efficiency
• Dynamic power reduction prevents overheating and improves battery performance and safety

Specifications:

• LED indicators display PV charging, charger stage, and event status
• Remote panel for monitoring and setting (requires the Solar MPPT Remote Panel)
• 30% Higher than the PWM load
• RV short-circuit protection, charge over-current protection
• RV-C, Modbus, and Bluetooth built-in
• 12/24/36/48V System Voltage
• MPPT tracking efficiently is up to 99.5%
• Lead-acid, AGM (Sealed), Gel, Flooded, Lithium batteries and custom
• Current-limiting charging mode
• Xantrex App for ultimate control
• Compliance: UL1741CSA C22.2#107.1
