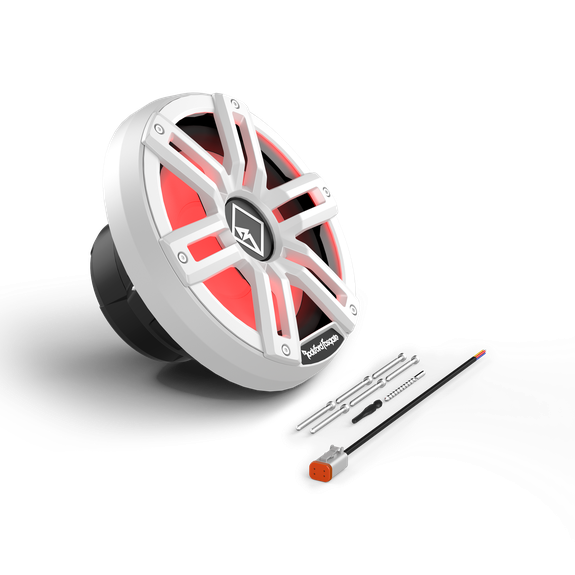

Rockford Fosgate M2 10" DVC 2 Ohm Color Optix Sealed Enclosure Marine Subwoofer White/Stainless M2D2-10S
The M2D2-10S is a 10” DVC 2-Ohm Color Optix™ subwoofer that connects with our Rockford Fosgate Color Optix™ controller and RF Connect™ App, allowing you to customize your own color patterns. Connectivity is handled through integrated Deutsch™/Amphenol™ connectors that make wiring simple and error proof. Wiring with the Versa Switch™ allows you to quickly configure the voice coil in series or parallel with flip of switch. This “S” model is optimized for small sealed enclosures where space is at a premium. Includes 2-piece grille with interchangeable colored plastic and stainless-steel insert.
The M2 series of Element Ready™ subwoofers are IP67 certified, making them truly purpose-built for marine and motorsport applications where protection from damaging UV rays and water spray is essential. They are designed to pair with the Rockford Fosgate Color Optix™ controller and RF Connect App through its Deutsch™ and Amphenol™ connectors integrated into the basket. To compliment the plug and play connectivity and streamline installation, M2 subwoofers are equipped with a Versa Switch™ to make changing impedance between 1 and 4 ohms as easy as flipping a switch. Matching the theme of your boat can be further customized by using the included color insert or stainless-steel grille for that sport look.
FEATURES AT A GLANCE
- Adjust color experience to suit your taste with Rockford Fosgate® Color Optix™ controller (optional)
- Integrated Deutsch™/Amphenol™ connectors make wiring connections simple and error proof
- Optimized for small sealed enclosures when there is very little space for an enclosure
- Element Ready™ design protects against outdoor exposure
- Industry’s first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
- VERSA impedance switch quickly allows series or parallel configuration without additional wiring
- Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination
- Deutsch™ connector front/rear silicone seal protects against water ingress
- VAST vertical attach surround technique increases effective radiating cone area up to 25%
- 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
- IPX6 Marine Grade for prevention of water intrusion
- Provides superb low and midrange frequency reproduction with smooth high frequency roll-off
- 2-piece grille allows for interchangeable stainless-steel or "sport" option
- Gold plated Marine grade brass terminals provide a corrosion resistant connection
- Klippel Verified certification program delivers the best possible loudspeakers
- 2-Year Warranty
- Injection molded mineral filled polypropylene cone body with UV inhibitors
Specs
|
MPN:
|
M2D2-10S
|
Size: |
10" |
Nominal Impedance (Ohms): |
1-Ohm or 4-Ohm Switchable |
Power Handling (Watts RMS): |
400 Watts |
Voice Coil Diameter: |
1.95" (49.53 mm) |
Magnet Weight (oz): |
32.9 oz. (0.9 Kg) |
Voice Coil Type: |
Dual Voice Coil |
Woofer Displacement: |
0.07 cu. ft. (2.03 Liters) |
Speaker Connector: |
Deutsch™ and 1/8" Spade |
Cutout Diameter: |
8.87" (225.3 mm) |
Mounting Depth: |
4.24" (107.7 mm) |
