Description

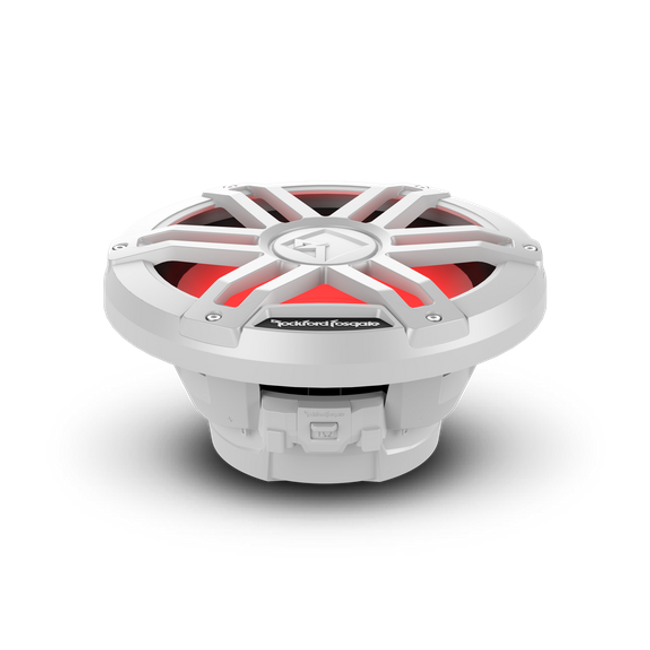

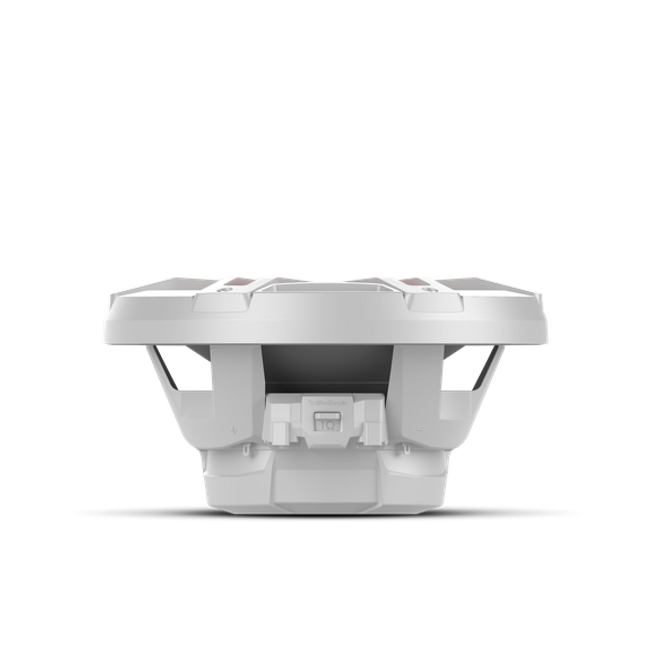

Rockford Fosgate M1 10" DVC 2 Ohm Color Optix Marine Subwoofer M1D2-10
The M1D2-10 Color Optix™ 10” DVC 2-Ohm subwoofers deliver loud, clear, accurate bass, and light the way for your journey! The subwoofers connect with the Rockford Fosgate Color Optix™ Controller and RF Connect App, allowing you to customize your own color patterns. The Element Ready™ design and IPX6 certification makes them truly purpose-built for marine or motorsport applications where protection from damaging UV rays and water spray is essential.
The M1 series of Element Ready™ subwoofers are designed to pair with the Rockford Fosgate Color Optix™ Controller and RF Connect App through its Deutsch™ and Amphenol™ connectors integrated into the basket. This combined with their IP67 certification make these speakers Element Ready™ and truly purpose built for marine applications. To compliment the plug and play connectivity and streamline installation, M1 subwoofers are equipped with a VersaSwitch™ to make changing impedance between 1 and 4 ohms as easy as flipping a switch.
FEATURES AT A GLANCE
- Optically clear UV stable RGB Lighting Encapsulation
- 2" (50mm) High Temp Kapton™ Woofer Voice Coil Former
- Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination
- Industry’s first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
- 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
- Fully insulated silicone tinsel leads
- Vented motor design with water-repelling nano coated mesh screen
- Zinc Nickel-plated Marine grade brass connection terminals
- Linear Synthetic Fiber Blend Spiders
- Santoprene VAST Surround
- Integrated Deutsch™/Amphenol™ connectors make wiring connections simple and error proof
- VAST vertical attach surround technique increases effective radiating cone area up to 25%
- Injection molded mineral filled polypropylene cone body with UV inhibitors
- VERSA impedance switch quickly allows series or parallel configuration without additional wiring
- Co-molded surround and mineral filled polypropylene cone body
- 2-Year Warranty
Specs
|
MPN:
|
M1D2-10
|
Size: |
10" |
Nominal Impedance (Ohms): |
1-Ohm or 4-Ohm Switchable |
Power Handling (Watts RMS): |
300 Watts RMS 1200 Watts PEAK |
Voice Coil Diameter: |
2.0" (50.8 mm) |
Magnet Weight (oz): |
47.70 oz. (1.35 Kg) |
Voice Coil Type: |
Dual Voice Coil |
Frequency Response: |
20 Hz - 750 Hz |
Woofer Displacement: |
0.10 cu. ft. (2.80 Liters) |
Speaker Connector: |
Deutsch |
Cutout Diameter: |
8.90 in. (226 mm) |
Mounting Depth: |
4.23 in. (107.4 mm) |
