Description

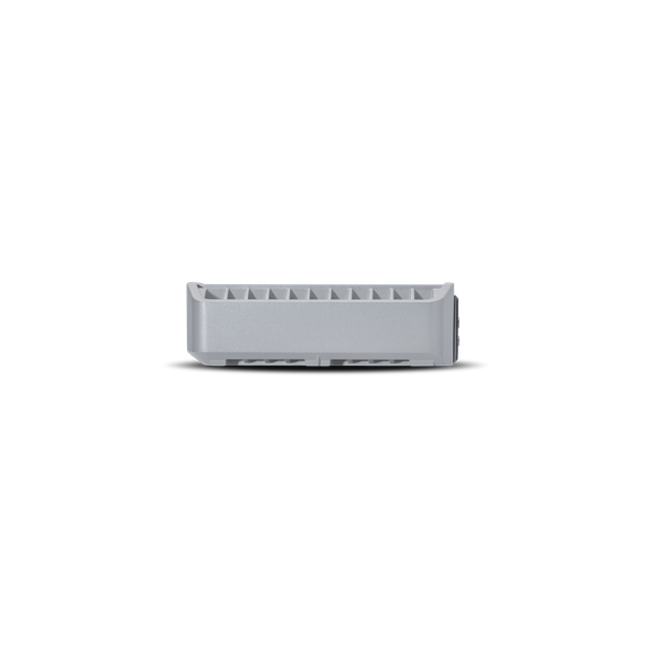

Rockford Fosgate Punch Marine 300 Watt 2-Channel Amplifier PM300X2
The PM300X2 is a 300 Watt 2-channel amplifier with high dynamic power using Class-a/b technology and a conformal coated pc board designed for motorsport and marine applications.
The PM300X2 is a solid choice if you're looking to drive a pair of coaxial speakers, component speakers, or a single subwoofer. The amplifier can also be run in stereo/mono mode simultaneously when using passive crossovers (not supplied) on all speakers. With proven PUNCH technology, the PM300X2 delivers real Rockford Fosgate power from a small design and is flexible to accommodate any moderately sized system.
FEATURES AT A GLANCE
- Features C.L.E.A.N. Set-up
- RCA pass-thru outputs
- High level input capable with Auto Turn-On circuit
- On-board Punch EQ with +18dB boost @ 45Hz
- Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
- 12dB/octave Butterworth crossover
- Cast aluminum heatsink
- Muted turn on
- Short circuit protection
- Stealth top mounted control panel
- Over current protection
- Marine grade stainless steel hardware
- Marine grade two part epoxy coating on circuit boards
- 2-Year Warranty
Specs
UPC: |
780687345075 |
|
MPN:
|
PM300X2
|
Total Power: |
300 Watts |
Bridgeable: |
Yes |
Frequency Response: |
20Hz-20kHz |
Input Sensitivity: |
150 mV - 12 V |
Efficiency: |
69% @ 4-Ohm |
Remote Controls: |
Optional Punch Level Control (PLC2) Ready |
Power Wire Gauge: |
8 AWG to 4 AWG |
Power Input Connector: |
Captive C-Clamp |
Speaker Wire Gauge: |
8 AWG to 18 AWG |
Speaker Output Connector: |
Captive C-Clamp |
Cooling: |
Convection |
Recommended Fuse: |
50 A |
Average Current Draw: |
23 A |
Max. Current Draw: |
45 A |
Height: |
2.38" |
Width: |
7.76" |
Depth: |
9.86" |
