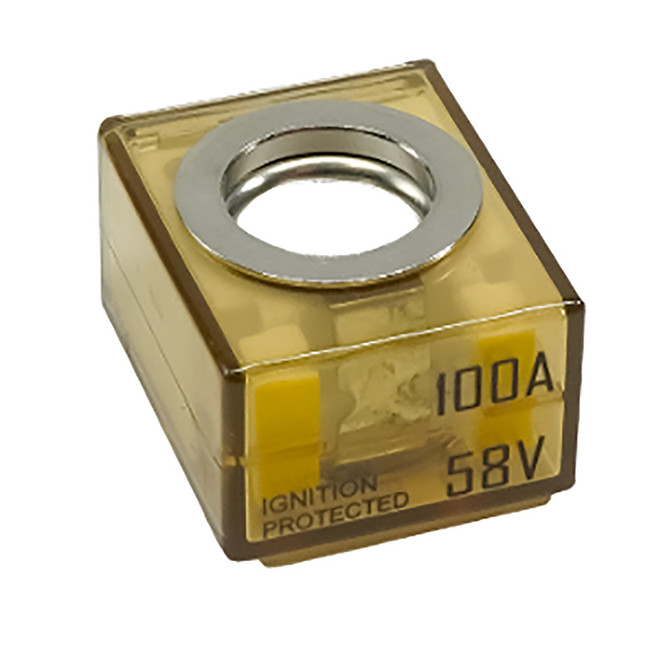

Egis MRBF Terminal Fuse - 100 Amp - 3603-100

MRBF Terminal Fuse - 100 Amp

• Transparent easy visual of fuse status
• Ignition-protected SAE/J1171-ISO8846
• High interrupt rating satisfies ABYC requirements for DC main circuit protection on larger battery banks
• Color-coded for easy ID of amperage rating

Features:

• Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.
• High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power
• Ignition Protected safe for installation in closed compartments with potentially explosive gases Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems.
• Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
• 58 Vdc Rating: easily supports 12 to 48V nominal applications.
• High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power
• 4-Year Warranty: We stand behind our product's ability to meet your needs.

Specifications:

• Continuous Current (Amps): 100
• Max Voltage (VDC): 58
• Interrupt Rating @ 14 VDC (Amps): 10,000
• Interrupt Rating @ 48Vdc (Amps): 5,000
• Interrupt Rating @ 58Vdc (Amps): 2,000
• Ingress Protection: IP66
