Description

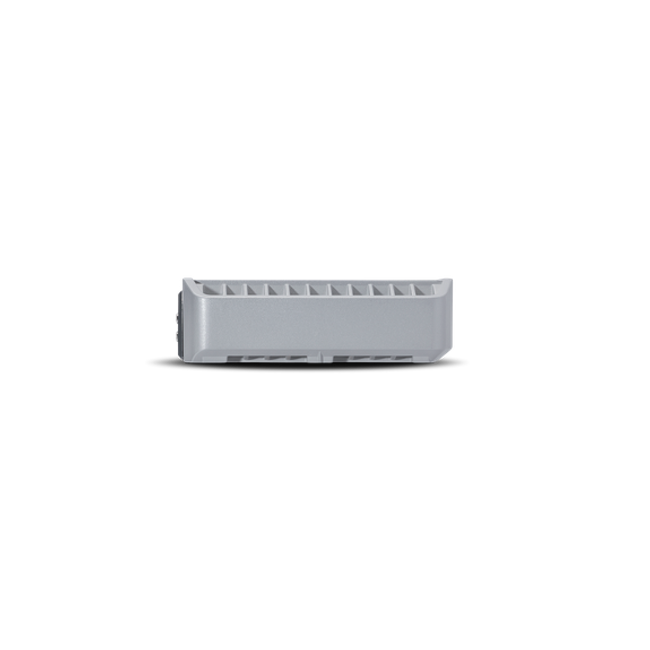

Rockford Fosgate Punch Marine 500 Watt Class-bd Mono Amplifier PM500X1bd
The PM500X1bd is a 500 Watt mono amplifier with high dynamic power using Class-bd technology and a conformal coated pc board designed for motorsport and marine applications.
With its super efficient Class-bd circuit topology, the PM500X1bd will drop some serious BASS! Due to its dedicated low frequency response, this amplifier is optimized for mid-bass speakers or subwoofers only. No need to worry because its 1-ohm capability will drive a pair of 4-ohm DVC subwoofers or quad-configuration of 2-ohm DVC subwoofers with ease.
FEATURES AT A GLANCE
- 12dB/octave Butterworth crossover
- High level input capable with Auto Turn-On circuit
- On-board Punch EQ with +18dB boost @ 45Hz
- RCA pass-thru outputs
- Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
- Features C.L.E.A.N. Set-up
- Over current protection
- Stealth top mounted control panel
- Short circuit protection
- Muted turn on
- Marine grade stainless steel hardware
- Cast aluminum heatsink
- Marine grade two part epoxy coating on circuit boards
- Infrasonic filter
- 2-Year Warranty
Specs
UPC: |
780687345105 |
|
MPN:
|
PM500X1bd
|
Total Power: |
500 Watts |
Bridgeable: |
No |
Frequency Response: |
20Hz to 250Hz +/- 1.0dB |
Input Sensitivity: |
150 mV - 12 V |
Efficiency: |
86% @ 4-Ohm |
Remote Controls: |
Optional Punch Level Control (PLC2) Ready |
Power Wire Gauge: |
4 AWG |
Power Input Connector: |
Captive C-Clamp |
Speaker Wire Gauge: |
8 AWG to 18 AWG |
Speaker Output Connector: |
Captive C-Clamp |
Recommended Fuse: |
80A |
Average Current Draw: |
35 A |
Max. Current Draw: |
70 A |
Height: |
2.38" |
Width: |
4.25" |
Depth: |
11.03" |
