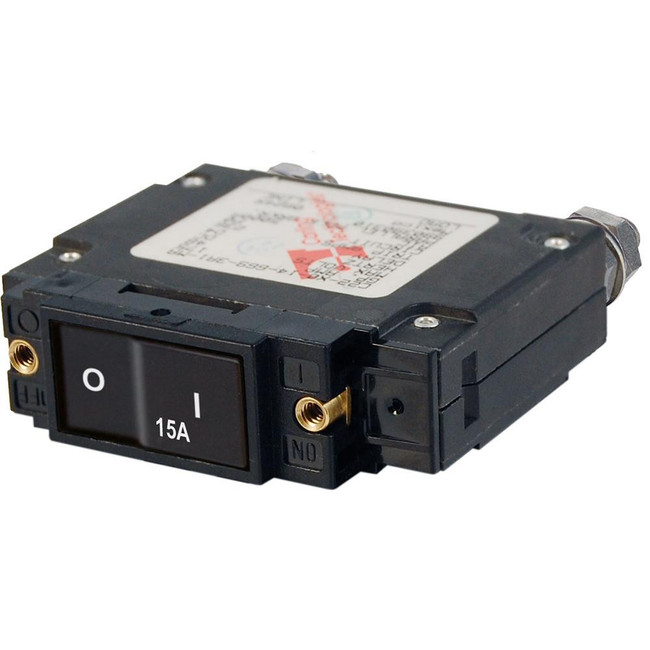

Blue Sea 7542 C-Series Flat Rocker Circuit Breaker - Single Pole - 15A

Blue Sea Systems 7542 C-Series Flat Rocker Circuit Breaker - Single Pole - 15A

• Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching
• Color actuator indicates "OFF" position
• Provides overcurrent protection for inverters, bow thrusters, and windlasses
• Combines switching and circuit protection into a single device
• "Trip Free" - cannot be held closed after trip
• Ignition protectedsafe for installation aboard gasoline powered boats

• Amperage: 15A AC / 15A DC
• Actuator Style: Flat Rocker
• Poles: 1
• Maximum Voltage: 240V AC / 48V DC
• Circuit Breaker Type: Magnetic Hydraulic - trip free
• Terminal Stud Torque: 35 in-lb (3.95 Nm)
• Interrupt Capacity: 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC
• Minimum Operating Temperature: -40° C
• Maximum Operating Temperature: 85° C
• Mounting Screw: #6-32 Stainless Steel
• Mounting Screw Torque: 6 in-lb (0.68 Nm)
• Switching Cycles: 10000
• Terminal Stud: 1/4-20 Tin-Plated Brass
• Weight: 0.38lb (0.17 kg)

Manufacturer: Blue Sea Systems
Part number: 7542
UPC: 632085075422
