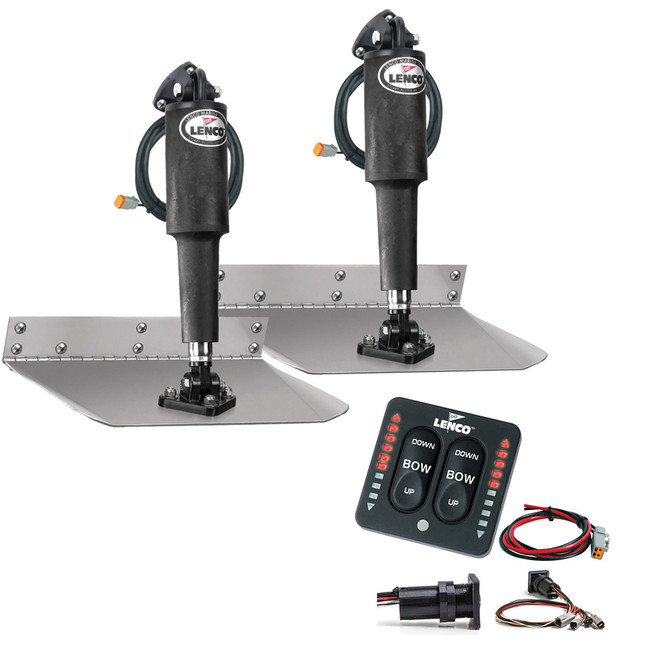

Lenco 9" x 36" Standard Trim Tab Kit w/LED Indicator Switch Kit 12V TT9X36I

Lenco 9" x 36" Standard Trim Tab Kit w/LED Indicator Switch Kit 12V TT9X36I

Trim tabs make the single most important difference in the way your boat rides and performs. They are optional on some boats but should be as standard as power trim and tilt. Lenco trim tabs make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a mega-yacht. Lenco's ballscrew design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. We also like being oil-free and environmentally conscious.

• Instant response electric actuators for precise control
• Everything is fully submersible, maintenance-free and sealed for life
• Self-locking ballscrew will not drift, even while backing down
• 12-gauge laser cut stainless steel trim tab planes
• High-impact corrosion-proof mounts look great through years of abuse
• Clean, time and space-saving installation
• Actuators have high-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case
• 316 super buff stainless steel rams

Tactile Switch w/ Indicator LED for all Single Actuator Trim Tab Systems
Features:

• Self-contained, sealed keypad
• Self-contained, sealed control box module
• Fade/smudge-proof, laser engraved graphics
• Plug & play switch wiring harness connector
• Includes 36" power pigtail for control box
• 2" hole cut-out size, overall size 2.75" x 2.75"
• Built-in retract feature returns tabs to a fully retracted position when power is removed
• 2 high-intensity L.E.D. indicator displays show the exact position of our trim tabs at all times
• Photo eye reads ambient light and adjusts the L.E.D. indicator display intensity for optimum viewing in direct sunlight
• 12 & 24-volt compatibility
• Includes Self-Check Feature

Each Kit Includes:

• Tactile LED Indicator Switch Kit
• 2 12-volt Actuators with 6-foot leads and Deutsch connectors
• 2 20' actuator extension harnesseswith Deutsch connectors
• 2 Stainless steel trim tab blades
• 2 upper mounting bracket with gland seal
• 2 lower mounting bracket
• All Necessary stainless steel Mounting hardware
