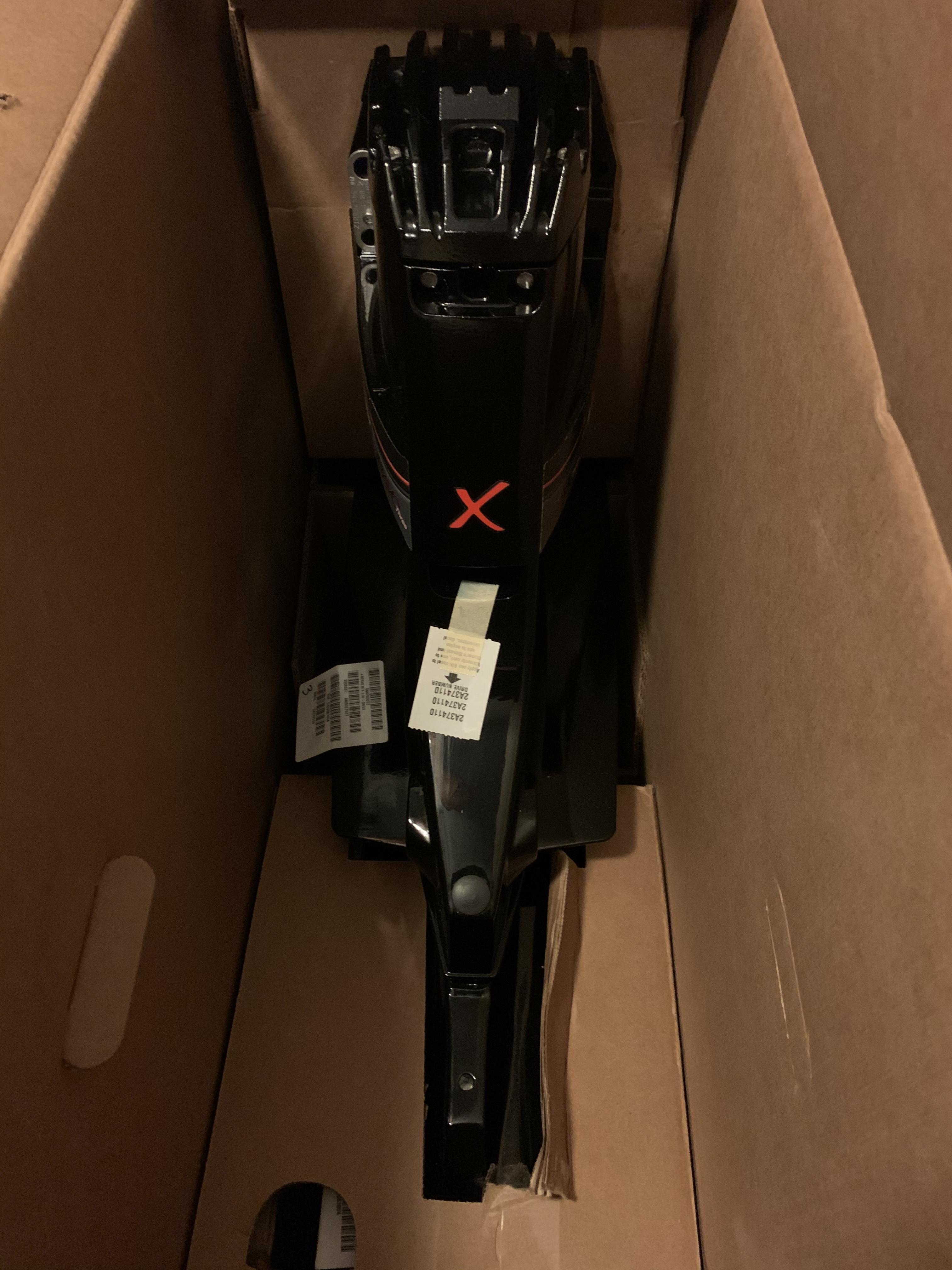

Brand New OEM MerCruiser Bravo 3 X outdrive!
100% real, current model, directly from Mercury
Factory warranty(1 year parts and labor, 3 years corrosion)
| Maximum Power Capacity | 450 HP (332 KW) |
|---|---|
| Lower Unit Design | Large Rudder Area Twin Prop |
| Max. Propeller Diameter | 2 X 16″ |
| Water Inlet Location | Strut |
| Clutch Type | High-Strength Smooth-Shift Cone Clutch with F-N-R |
| Available Gear Ratios | 1.81, 2.00, 2.20:1 |
| Counter-Rotation | Twin Prop |
| Upper Unit Gear Set | Precision Shimmed Assembly with Near-Net Forged Helical Gears, Steel Chimney Bearing Supports, Reinforced Ribbed Top Cap |
| Lower Unit Gear Set | Precision Shimmed Assembly Forged Bevel Gears with Twin Counter Rotating Propshafts for Bravo Three |
| Propshaft Material | Heat-Treated Stainless Steel |
| Standard Exhaust Outlet | Low-Restriction Through Transom or Through Propeller |
| Required Propeller Hub Type | None for Bravo Three |
| Recommended Lubricant | Mercury High-Performance Gear Lube |
| Monitoring System | Drive Lube Monitor w/Audio Warning or Engine Guardian® |
| Corrosion Warranty | 3-Year, Limited |
| Housing Construction | XK 360 Low-copper Alloy Machined for Large Bearings |
| Corrosion Protection | Tri-Paint, Anodes & MerCathode® Electronic Corrosion Prevention |
| Anode Type | Ultra-Pure Aluminum Anodes or Magnesium Anode Kit |
| Speedometer Pick-up | Integrated Into Lower Housing, Digital Output Optional |
| Steering System | Single Cylinder Power Steering with Anti-Feedback |
| Steering Range | 56° Range Stop to Stop, Digital Output Optional |
| U-Joint Type | Heavy Duty Permalube® Virtually Maintenance-Free |
| Power Trim System | Twin-Cylinder Hydraulic Featuring Power Trim XD® Kick-up Return |
| Typical Trim Range | -2° to 14° |
| Trim Limit Switch | Adjustable Limit Analog or Digital – Engine Dependant |
| Trailer Limit | 51° |
| Trim Hinge Pin Design | Permanently Lubricated – No Maintenance Required |
| Hydraulic Trim Lines | Stainless Steel Braided Armor |
| Drive Coupler | Greaseable From Inside Boat |
| Drive Weight | 151 lbs. (68 kg) |
Warranty Information
Mercury Marine & Quicksilver products carry a 1 year factory warranty against defects and workmanship. Serialized items such as engines, drives, and transom assemblies must be installed by a dealer for warranty to be valid.
