Description
Rockford Fosgate M2 12" DVC 2 Ohm Color Optix Sealed Enclosure Marine Subwoofer Black M2D2-12SB
The M2D2-12SB Color Optix™ 12” DVC 2-Ohm sealed enclosure subwoofers deliver loud, clear, accurate bass, and light the way for your journey! M2 provides a customized look by using either the stainless-steel grille or the Black “sport” grille inserts. The subwoofers connect with the Rockford Fosgate Color Optix™ Controller and RF Connect App, allowing you to customize your own color patterns. The Element Ready™ design and IPX6 certification makes them truly purpose-built for marine or motorsport applications where protection from damaging UV rays and water spray is essential. This subwoofer is optimized for small sealed enclosures where space is at a premium.
The M2 series of Element Ready™ subwoofers are designed to pair with the Rockford Fosgate Color Optix™ Controller and RF Connect App through its Deutsch™ and Amphenol™ connectors integrated into the basket. This combined with their IP67 certification make these speakers Element Ready™ and truly purpose built for marine applications. To compliment the plug and play connectivity and streamline installation, M2 subwoofers are equipped with a VersaSwitch™ to make changing impedance between 1 and 4 ohms as easy as flipping a switch. This subwoofer is designed to perform in small sealed designs when there is very little space for an enclosure.
FEATURES AT A GLANCE
- Element Ready™ design protects lighting from exposure
- Adjust color experience to suit your taste with Rockford Fosgate® Color Optix™ controller (optional)
- Integrated Deutsch™/Amphenol™ connectors make wiring connections simple and error proof
- Bright, wide-angle LEDs provide rich, reliable illumination
- 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
- Injection molded mineral filled polypropylene cone body with UV inhibitors

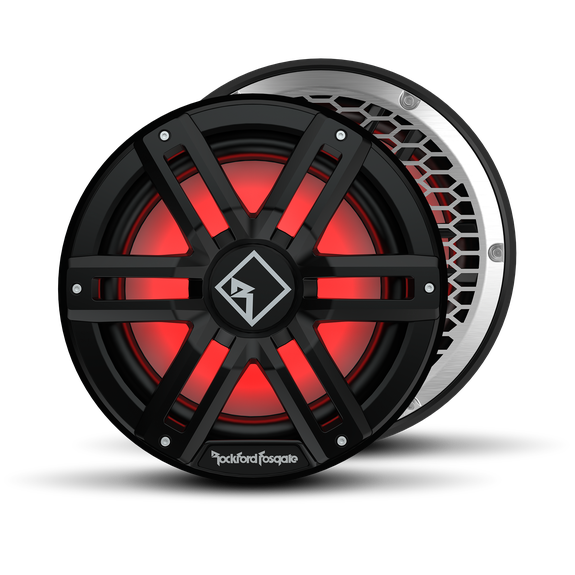

- 2-piece grille allows for interchangeable stainless-steel or "sport" option
- VERSA impedance switch quickly allows series or parallel configuration without additional wiring
- Industry’s first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
- Deutsch DT connectors incorporate front/rear silicone seals to protect against environmental ingress
- Gold plated marine grade brass terminals provide a corrosion resistant connection
- 2-Year Warranty
- Provides superb low and midrange frequency reproduction with smooth high frequency roll-off
- Optimized for small sealed enclosures when there is very little space for an enclosure
- VAST vertical attach surround technique increases effective radiating cone area up to 25%
- IPX6 Water Intrusion Rated
- Klippel Verified certification program delivers the best possible loudspeakers
Specs
|
MPN:
|
M2D2-12SB
|
Size: |
12" |
Nominal Impedance (Ohms): |
1-Ohm or 4-Ohm Switchable |
Power Handling (Watts RMS): |
400 Watts RMS 1600 Watts PEAK |
Voice Coil Diameter: |
1.95" (49.53 mm) |
Magnet Weight (oz): |
61.09 oz. (1.7 Kg) |
Voice Coil Type: |
Dual Voice Coil |
Frequency Response: |
20 Hz - 750 Hz |
Woofer Displacement: |
0.121 (3.43 Liters) |
Speaker Connector: |
2-pin Deutsch™ and 1/8" Spade |
Cutout Diameter: |
11” (279.4 mm) |
Mounting Depth: |
4.87" (123.8 mm) |
